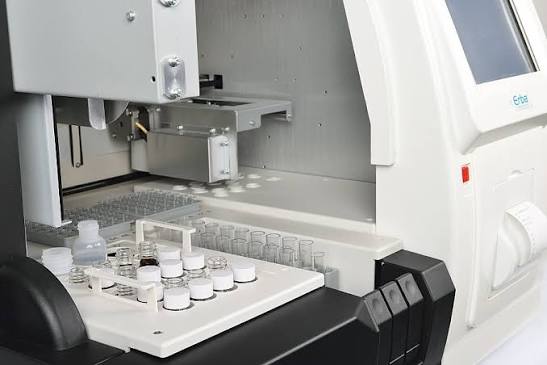

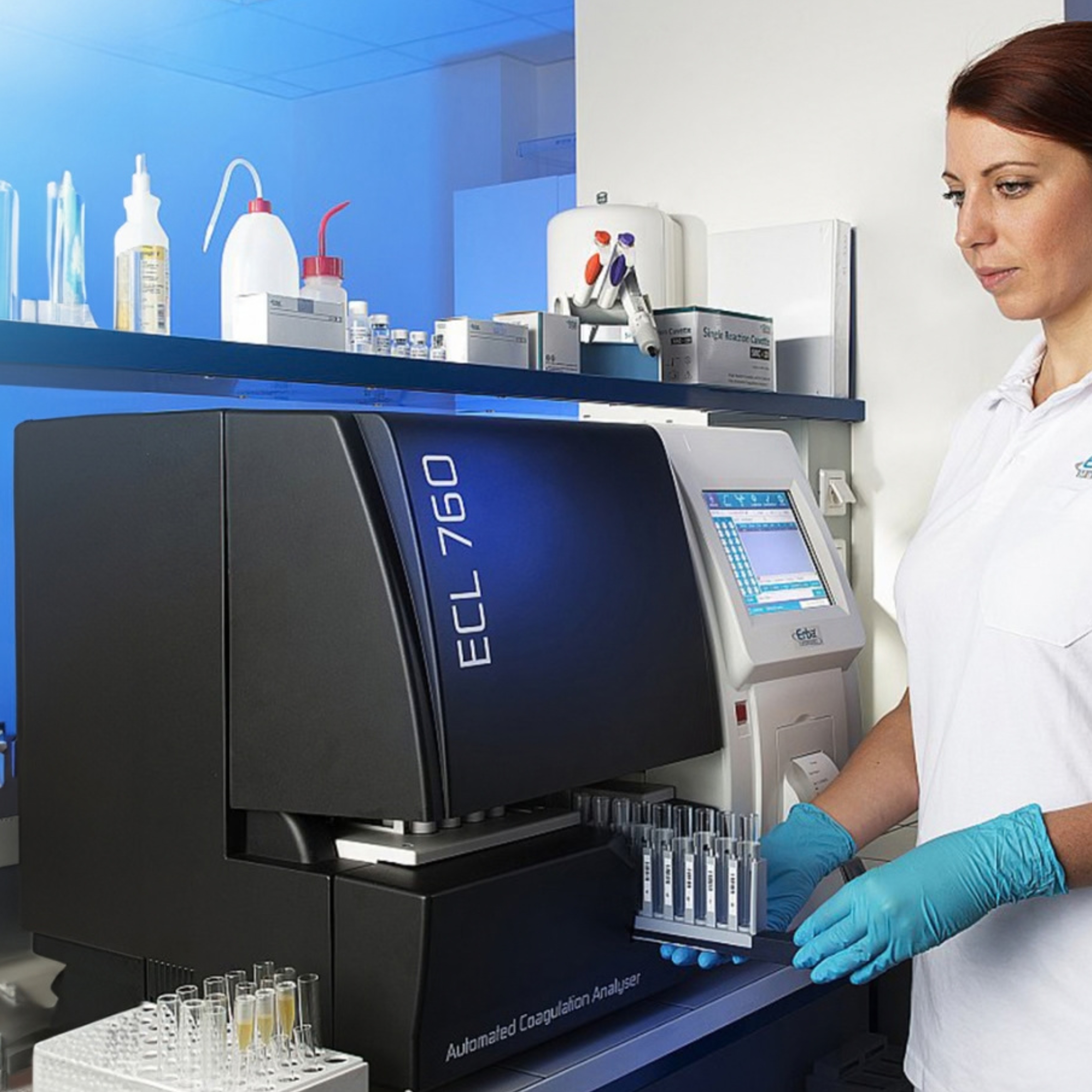

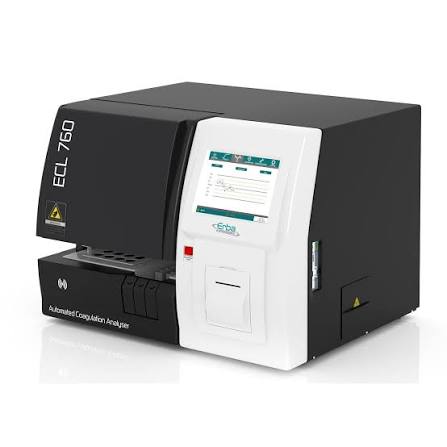

ECL 760. Advanced Fully Automated Coagulation Analyzer
A fully automated, random-access hemostasis analyser delivering accurate and precise results. It is able to perform routine screening, immunologic and chromogenic assays. Protocols for Erba hemostasis reagents are pre-programmed for ease of use. User defined testing is also possible, allowing the consolidation of both specialty and routine reagents onto one fully automated analyser.
- Automatic monitoring of reagent levels and on-board
- Integrated barcode scanning for samples increases the ease of use
- The reagent menu includes PT, APTT, Fibrinogen, Thrombin Time, Antithrombin, Protein S, Protein C, Coagulation Factors, LA and D-Dimer
- Open channel programming allows development of user definable assays
- Random-access, walk-away workflow
- Easy-to-use software with color touchscreen
- STAT sample processing enables critical tests to be processed at any time
- Analysed data may be displayed or printed with reaction curves for flexibility in result management
Model Name:
ECL 760
Brand :
Erba Mannheim
Origin:
Czech Republic
SPECIFICATIONS
Principle:
Clotting: Scattered Light Detection Method | Chromogenic : Colorimetric Method | Immunoturbidimetry: Latex Enhanced Turbidimetric Method
Throughput:
PT: 45 Tests/Hour | APTT: 30 Tests/Hour | PT, APTT: 35 Tests/Hour
Sample volume:
PT, APTT, TT: 50 µl; | Fib, ATIII: 10 µl; | Factor Assays: 5 µl, | Erba D-Dimer R : 15 µl
Load capacity:
27 samples, continuous loading | 3 sample racks
Storage:
100,000 test results, 10,000 clot curves
Printout:
Built-in printer
Light Source:
LED Based with 640 nm, 405 nm, and 575 nm
Sample type:
STAT, patient sample, control
Reagent:
20 reagents cooled at 13-15oC. 3 reagent locations for Clean, Diluent and Buffer
Output display:
8" LCD Graphical touch screen display
Info Data:
Sample Bar code Reader: Yes
Info Data:
Reagent lot management: RFID | Lot Number, Expiry, Reagent Name and Type, Volume monitoring
Info Data:
Calibration Mode: Manual and Automatic | Calibration: 6 Calibration points
Info Data:
No. of cuvette holder: 72 numbers, with an option to start from any position
Dimension & Weight:
650 mm x 580 mm x 510 mm | 53 kg
